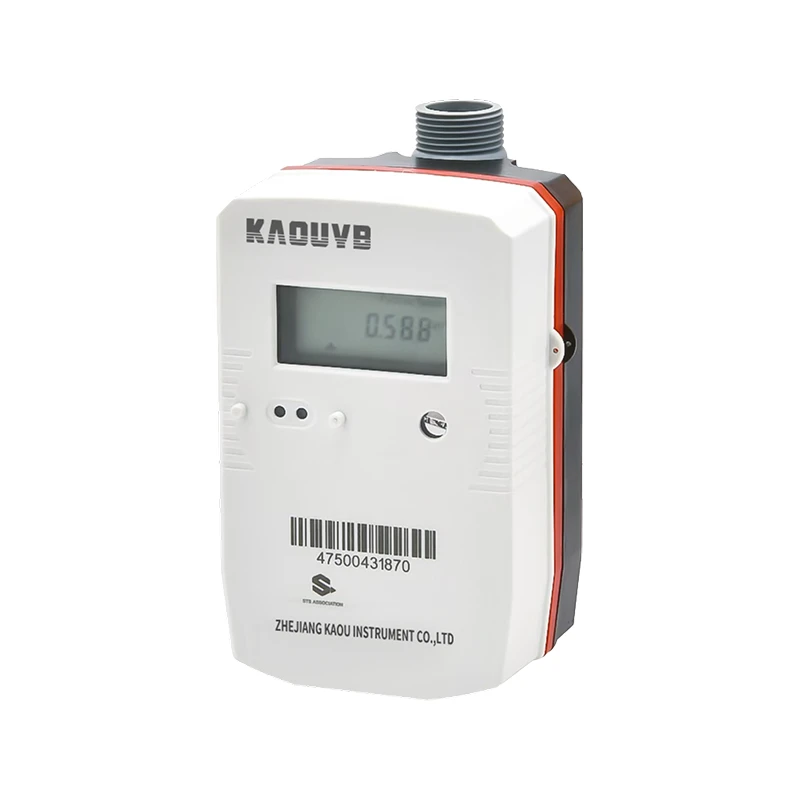

This plastic pipe prepaid water meter integrates wireless communication, intelligent control, and multi-mode payment technologies, serving as a core device for modern water resource management and efficient metering. In addition, the plastic pipe connection gives this water meter the characteristics of being lightweight, easy to install and cost-effective.

Technical Parameters

Items	Parameter
Nominal caliber	DN15	DN20	DN25
Overload Flow Q4(m³/h)	3.125	5	7.875
Permanent Flow Q3(m³/h)	2.5	4	6.3
Boundary flow Q2(m³/h)	0.04	0.064	0.1008
Min Flow Q1(m³/h)	0.025	0.04	0.063
Waterproof Level	IP68
Working Environment	-10℃-55℃, ≤100%RH
Communication	LoRa≤1KM, LoRaWAN≤10KM (Actual distance depends on conditions)
Battery	Lithium battery (Er2650,8500mAh); 8 years life time; battery is exchangeable
Power supply	DC 3.6V
Display Content	Balance, purchased water, used amount,consumed water, Voltage, version Nos, etc
Static Currency	<20uA
Max reading	99999℃
Max Permissible Error	Q1≤Q≤Q2: ±5% Q2≤Q≤Q4:±2%

Functions

(1)Insufficient water warning
(2)Emergency Water (overdraft)
(3)Valve open and close automatically
(4)Real-Time Clock
(5)Flexible tariff and debt collection setting
(6)Anti magnetic tamper

(7)Lora or Lora-WAN communication optional (CIU)
(8)Multi payment type, Token, Mobile, Pose, E-bank, etc.
(9)Magnetic field protection
(10)low credit warning
(11)Data Record:①10 years' consumption data record by month
②10 years' consumption data record by hour

Core System Components

product-1200-675

This plastic pipe prepaid water meter system forms a complete ecosystem with four key parts:

Smart Water Meter: Available in velocity, volumetric, and ultrasonic versions, it comes with an LCD display and integrated LoRa/LoRaWAN wireless modules. It meets the international STS standard IEC62055-41,51, enabling remote recharge and data query.

Split CIU: The Customer Interface Unit (CIU) is used for meter recharge and data checking. Equipped with a touchable LCD keypad (English display) and LoRa/LoRaWAN modules (same as the meter), it enables RF wireless communication with a programmable distance of 100-200m in residential areas.

HDMS Platform: The Hardware & Digital Billing Management System (HDMS) handles water vending, real-time monitoring of meter status, data storage, and statistical analysis, providing a one-stop back end management solution.

Mobile Vending Solution: Integrated with local e-payment platforms and banks, it allows water sales via POS terminals or mobile phones, enabling users to complete payments anytime, anywhere.
